Lugao XGN15-12 11 kV Ring Main Unit Switchgear

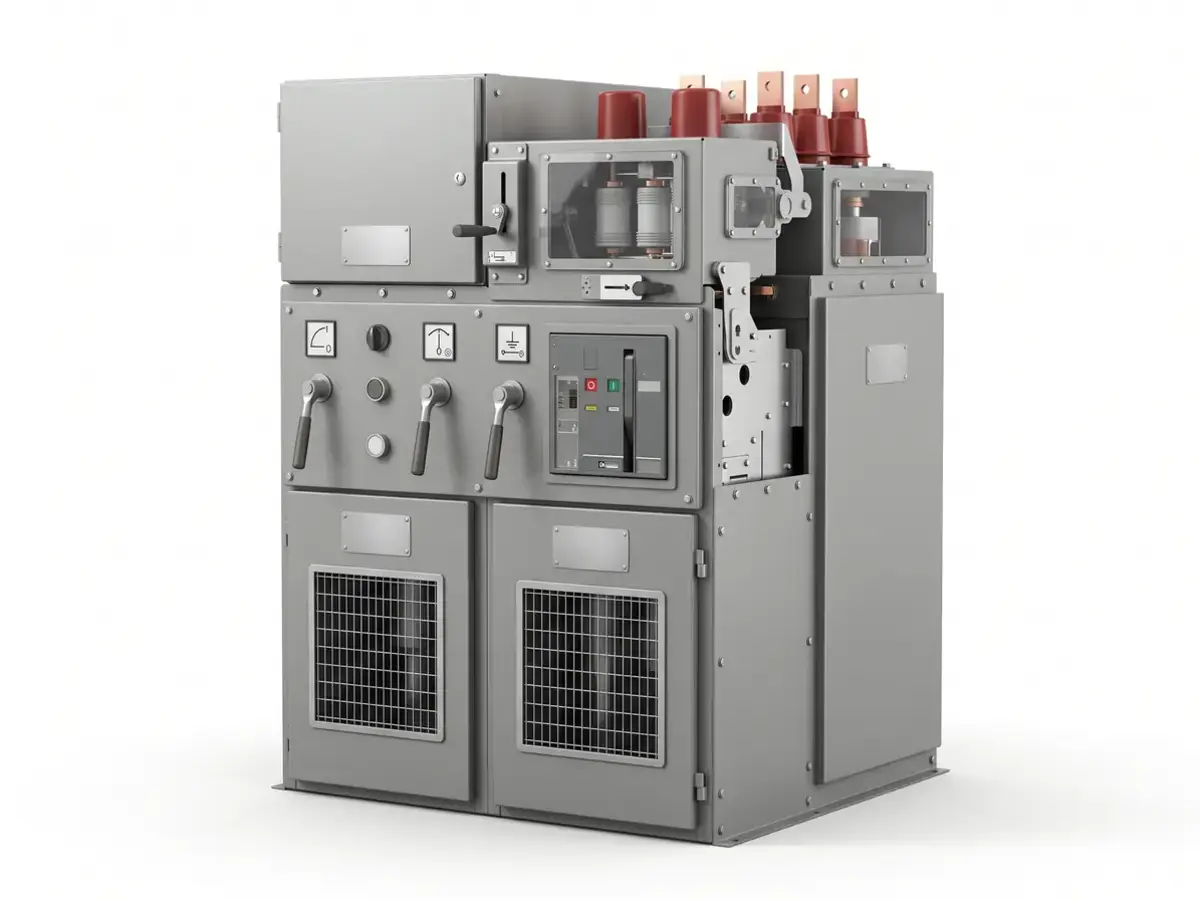

Representative image. Illustration only, not a photograph of the actual product.

Lugao

Lugao XGN15-12 11 kV Ring Main Unit Switchgear

Metal-enclosed 11/12 kV ring main unit rated 630/1250 A at 50 Hz, fixed cabinet construction with IP3X/IP4X enclosure protection.

The XGN15-12 is a medium-voltage ring main unit for 11 kV / 12 kV distribution networks, supplied as a fixed metal-enclosed cabinet with a rated current of 630 A or 1250 A at 50 Hz. Enclosure protection is IP3X/IP4X and the unit is used to sectionalise and protect feeders in substations, industrial plants and utility ring networks. It ships in a wooden case and carries a 12-month warranty.

ManufacturerLugao Power Co., Ltd.
ModelXGN15-12
HS code8537.20.90
Minimum order1 unit
Lead time30-45 days
PackagingWooden case, approx. 800 x 600 x 2200 mm, 350 kg gross
Enquire about this productManufacturer product page ↗

Technical specifications

Rated Voltage11 kV / 12 kV
Rated Current630 A / 1250 A
Rated Frequency50 Hz
Voltage LevelHigh voltage (MV distribution)
Enclosure ProtectionIP3X / IP4X
StructureMetal-enclosed cabinet
InstallationFixed, indoor
Current TypeAC
ApplicationPower distribution equipment
Warranty12 months
Package Gross Weight350 kg
OriginZhejiang, China

Specifications as published by the manufacturer; subject to change without notice. Brand names and trademarks belong to their respective owners.
