Huadong

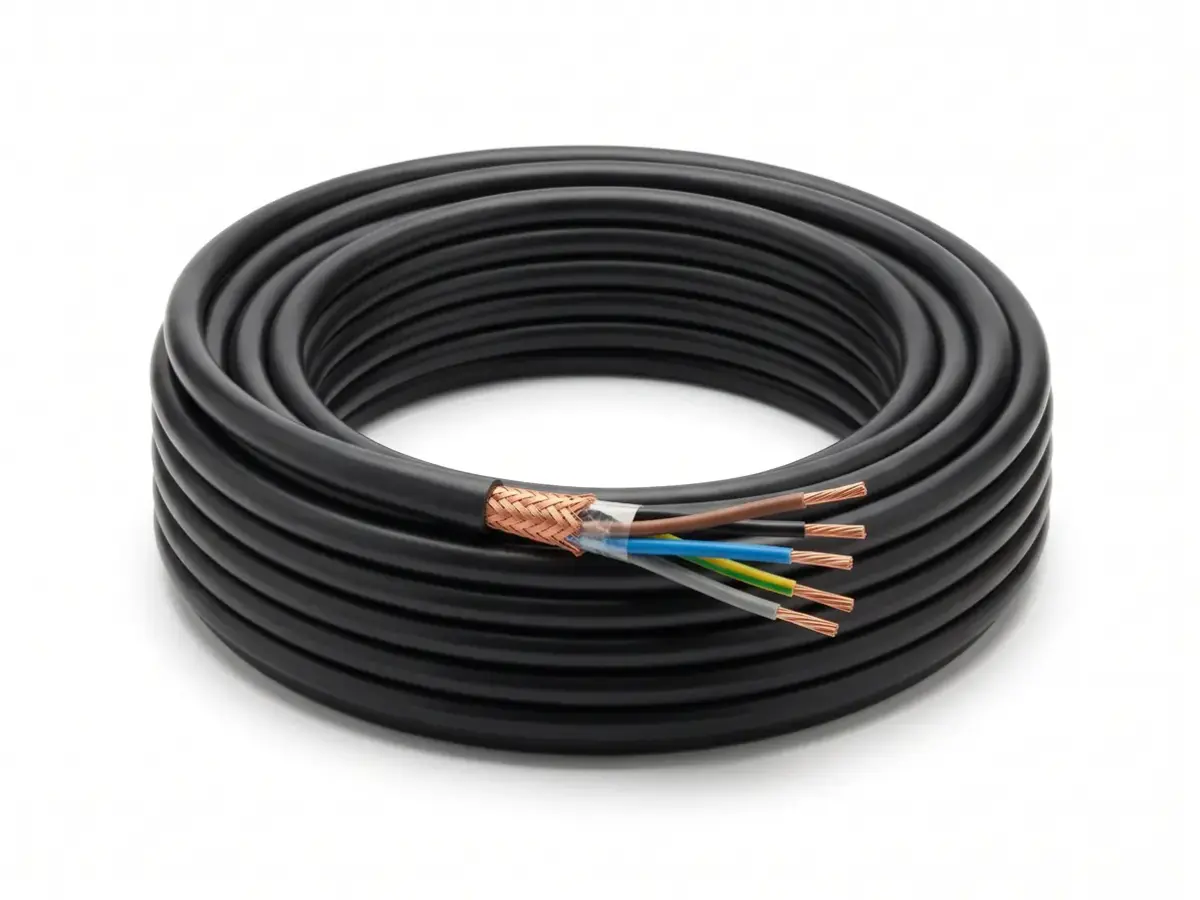

Huadong ZR-KVVP 450/750V Copper Braid Screened Control Cable
Flame-retardant control cable, PVC insulated and sheathed with copper wire braid screen, 2-61 cores.
ZR-KVVP is a flame-retardant screened control cable for switchgear, motor control centres and instrumentation loops laid indoors, in trenches and in ducts. Copper conductors are PVC insulated and laid up under a copper wire braid screen that suppresses electromagnetic interference, with an overall PVC sheath. It is rated 450/750V (0.6/1 kV variants available), built to IEC 60227, GB 9330, BS and VDE requirements, with core counts from 2 to 61.
| Manufacturer | Henan Huadong Cable Co., Ltd. |
|---|---|
| Model | ZR-KVVP |
| HS code | 8544.49.21 |
| Minimum order | 100 meters |
| Lead time | 20-35 days |
| Packaging | Wooden drums, length to order |
Technical specifications
| Cable Type | Screened flame-retardant control cable |
|---|---|
| Conductor Material | Copper |
| Number of Cores | 2 - 61 cores |
| Cross-Section Range | 1.5 - 16 mm2 |
| Insulation | PVC |
| Screen | Copper wire braid |
| Sheath | PVC |
| Rated Voltage | 450/750 V (0.6/1 kV available) |
| Standards | IEC 60227, GB 9330, BS, VDE |
| Application | Indoor, trenches and ducts; fixed installation |
| Colour | Black, blue or to order |
| Origin | Henan, China |
Certificates listed by manufacturer
Specifications as published by the manufacturer; subject to change without notice. Brand names and trademarks belong to their respective owners.
