Huada

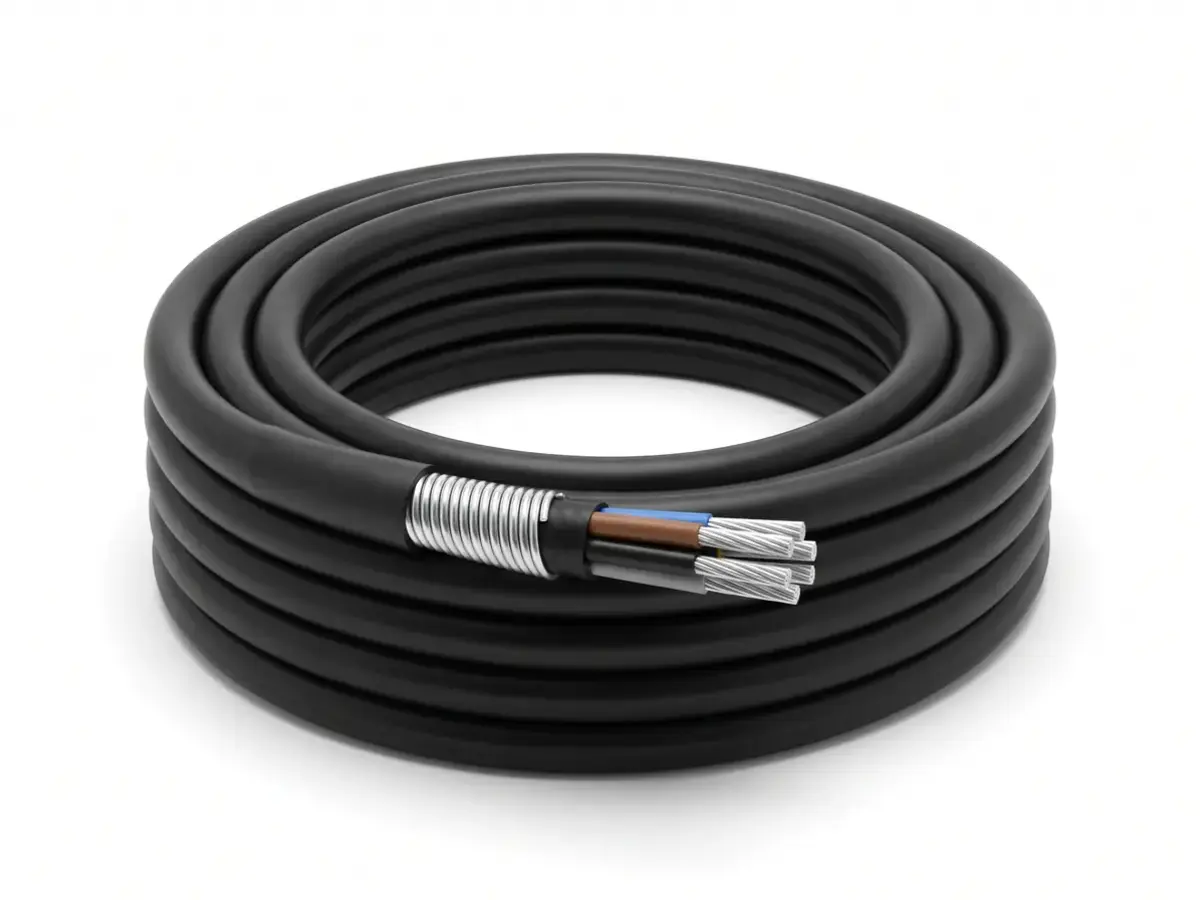

Huada BS 5467 600/1000V Aluminium Conductor XLPE SWA Armoured Cable
Aluminium alloy conductor armoured power cable, XLPE insulated with PVC sheath, 3 and 4 core, 600/1000V.
This BS 5467 style armoured cable uses an AA-8000 series aluminium alloy conductor, making it a lighter and more economical alternative to copper on long feeder runs. XLPE insulation allows 90 C continuous operation and 250 C short-circuit (max 5 s), while the steel wire armour and PVC sheath protect the cable in direct burial, duct and industrial installations. Sizes run from 10 mm2 to 630 mm2 in single and 2-5 core configurations, with STA, SWA or AWA armour options.
| Manufacturer | Huada Cable Co., Ltd. |
|---|---|
| Model | YJLV |
| HS code | 8544.49.21 |
| Minimum order | 500 meters |
| Lead time | 25-40 days |
| Packaging | Wooden or steel-wooden drums, approx. 110 x 110 x 110 cm |
Technical specifications
| Cable Type | Aluminium conductor LV armoured power cable |
|---|---|
| Conductor Material | AA-8000 series aluminium alloy |
| Conductor Class | Class 1 (solid) / Class 2 (stranded, compacted) |
| Number of Cores | Single core or 2, 3, 4, 5 cores |
| Cross-Section Range | 10 - 630 mm2 |
| Insulation | XLPE |
| Armour | STA / SWA / AWA |
| Outer Sheath | PVC (PE or LSZH optional) |
| Rated Voltage | 0.6/1 kV (600/1000 V) |
| Operating Temperature | 90 C continuous, 250 C short-circuit (max 5 s) |
| Standards | GB/T 12706, IEC 60228 |
| Origin | Gaocheng, China |
Certificates listed by manufacturer
Specifications as published by the manufacturer; subject to change without notice. Brand names and trademarks belong to their respective owners.
